The PRO Gives You Professional Results


Large Character Coding

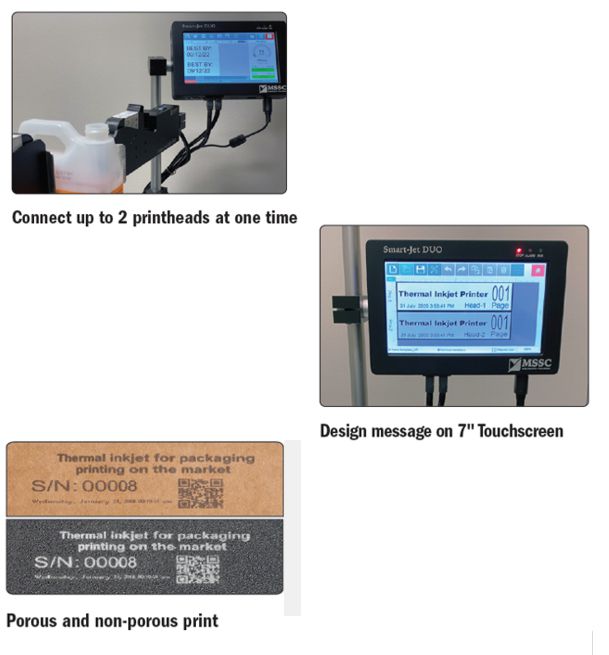

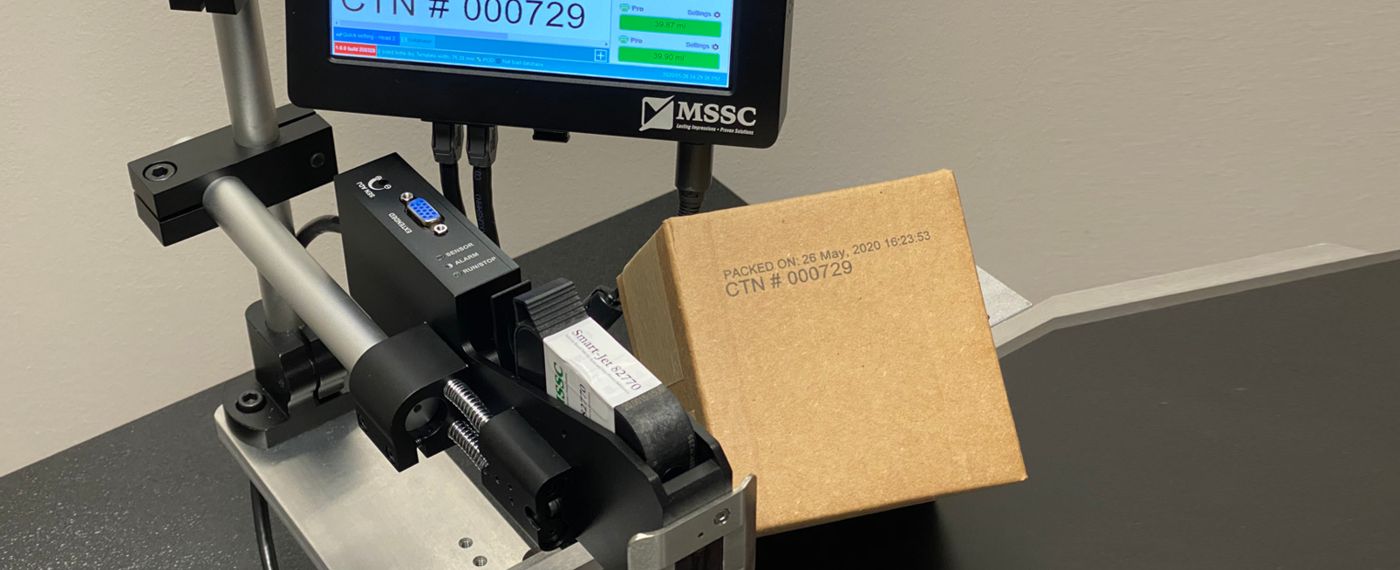

Smart-Jet® Duo Pro

The Pro Gives You Professional Results.
  • Text, Counter, Box/Lot, Datetime, Expiry Date, Julian Date, Shiftcode, Image, Database (TXT, CSV, SQL, MySQL, SQLite, JSON)
  • Barcodes (Code 11, Code 39, Code 128, EAN, QR, Datamatrix, GS1 Datamatrix)
  • POD (Print online data)
  • Free design
  • Integrate with devices (PLC, Camera, Checkweigher) via RJ45
  • Real-time Printing
  • WYSIWYG (What You See Is What You Get)
  • Data upload, Backup & Recovery via USB
  • Built-in internal sensor
  • External Sensor, Encoder and Alarm beacon available
  • Maximum length of template up to 78.74" (2m)
  • English, German, Vietnamese, Chinese, Korean, and Russian
  • Store up to 8GB template on the printer’s memory
  • Windows true fonts
  • Automatic recognition of ink type which sets ink parameters
  • Nozzle warming and auto-jet to improve decap time of cartridge
  • Nozzle status checking
  • Solvent ink for porous and non-porous material
  • Aqueous ink for printing on porous and semi-porous material
  • Support various colors of ink

Specifications:

  • Dimensions: (L x W x H):
    Controller 7.6" x 5.1" x 1.4" (193mm x 130.3mm x 34.5mm),
    Print head 8.5" x 2.5" x 1.9" (216.4mm x 64mm x 49.1mm)
  • Weight: Controller 2 lbs. (888 grams), Print head max 0.9 lbs. (412.5 grams)
  • Display: 7-inch touch screen on controller
  • Power Supply to Controller: AC 100-240 V, 50/60 Hz, DC 24V 2.5A, Maximum power consumption: 60W
  • Resolutions: Max 600 x 600 dpi
  • Print speed: Max 249 ft. (76m)/min @ 300 x 300 dpi
  • Density: Up to 3 levels of optical density
  • Throw Distance: Up to 0.2" (5mm)
  • Operating Temperature Range: 5°–50° C
